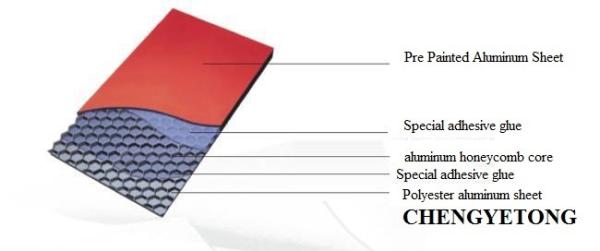

Products Name:Thickness 0.15～1.50mm PE PVDF Aluminum Honeybomb
Panel For Construction
Products Information:
Thickness:0.15～1.50mm
Material:Aluminium Alloy
Patterns:Wood Grain Marble Grain Brick Grain Camouflage Hairline
PVC PET film
Paint:PE PVDF SMP HDP EP PU
Coating Thickness:20μm～45μm
Package: carton or wooden case
Coil Inner Diameter:Φ508mm or Φ610mm
Application:Decorative Material,Exterior and interior curtain wall
Specifications:
| Test Item | Index or Stamdard |
| T Bending·180° | 0～3T |
| Pencil Hardness | ≥2H |
| Impact Resistance | ≥9J |
| Yield strength | 240～700Mpa |
| Glossiness | High70±5, Medium50±5, Low30±5 |
| MEK Resistance(Times) | ≥100 |
| Salt spray | ≥720hr |
| Acid Resistance | Soaking in 5％HCL solution for 300Hr,No bubbles, No discoloration,
No peeling |
| Alkali Resistance | Soaking in 5％NaOH％NaOH solution for 300Hr, No bubbles, No
discoloration, No peeling |
Process Flexibility
1. Manufacture Standard of implementation is as per AISI, ASTM, BS,
DIN, GB, JIS
2. The style, color and thickness of coating can be customized
according to clients’ requirements
3. Top coating can be 2-cota or 3-coat (primer+base coat+varnish)
4. Back coat can be single coating or double coating (primer+back
coating) as per clients’ requirements
5. Color coating on both sides also can be done according to
clients’ requirements
6. Providing color matching service without additional charge as
per RAL provided by clients
Product Characteristics
Satisfying the requirements of environment and shelf life that
household appliances need
Helping household appliance manufacturers reduce their production
costs
Possessing good moldability, corrosion resistance, ornament, and
processability, it can satisfy the requirements of high-speed and
precise processing equipment
PVDF coating, high weatherability, high strength, stable color and
non-fading
It is environmental and energy-efficient like other PPGI and PPGL;
Payment Terms
1. 100% TT in advace
2. 30% down payment, the balance against the copy of B/L
3. Irrevocable L/C at sight
Process characteristics
1. 3D Printing
2. Precision of Printing is 0.2mm
3. 5-color Overprint
4. Not less than 600 Kinds of color and pattern
